Wall Panels

In residential, commercial or industrial building sectors hollow core slabs can be used as a wall element.

Hollow core slabs have an excellent finish quality on both top and bottom surfaces, the lower surface because the elements are cast on steel production beds.

The upper surface because the element is smoothed by the Slipformer meaning that the final element requires no further finishing, painting is only if required.

To improve the architectural aspect of the upper surface, the elements can also be manufactured with a finish incorporating different coloured aggregates using a special topping machine.

This allows the economic production of high quality wall elements.

The elements can also incorporate insulating material between the base of the hollow core slab and the concrete topping to increase the acoustic and thermal properties.


Wall Panels are available

both 1200 mm and 1250 mm wide elements

8 holes

6 holes

Ability to have the side
connection indents M/For F/F
h 150 mm
h 200 mm
M/F   or   F/F

View evo Extruder machines
CAN BE ADAPTED ACCORDING TO CUSTOMER REQUIREMENTS

Gallery

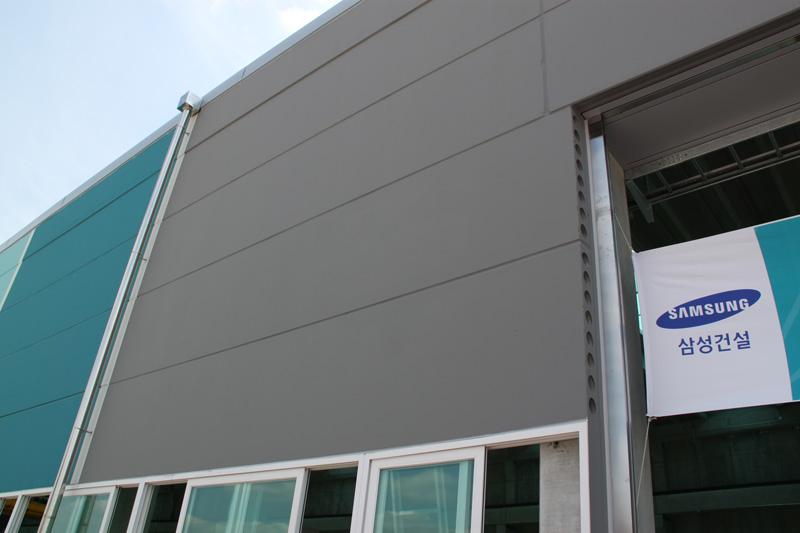

Hollow core Wall Panels

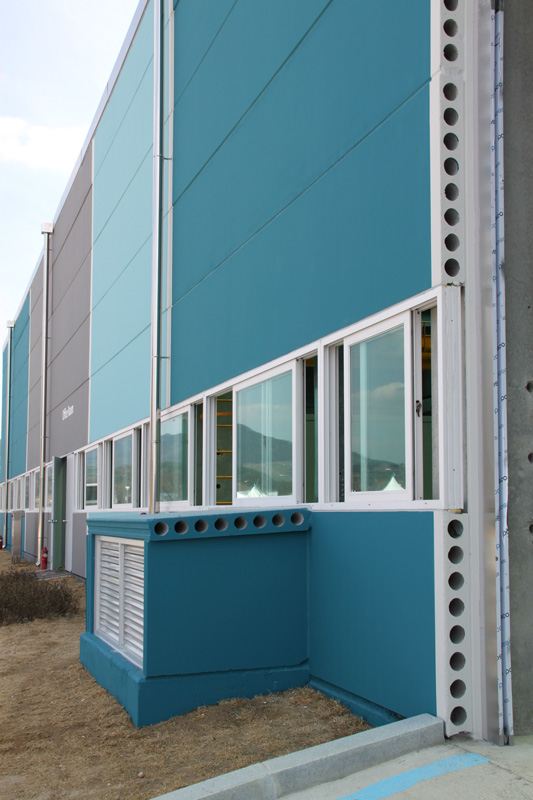

Industrial building with hollow core walls
Industrial building with hollow core walls
Hollow core Wall Panels
Industrial building with hollow core walls
Hollow core Wall Panels
Extruder machine producing hollow core wall panels
Extruder machine producing hollow core wall panels
Hollow core Wall Panels being produced by Extruder machine
