Multi-Angle Saw Series C-AM

Multi-Angle Saw Series C-AM

ADVANTAGES
  • Precision Cutting;
  • Heavy duty construction;
  • Fast cutting;
  • All types of cutting available (transversal, angular and longitudinal);
  • Cutting blade electric motor with toothed drive belt;
  • Joystick for the manual control of the machine;
  • Radio Controlled.

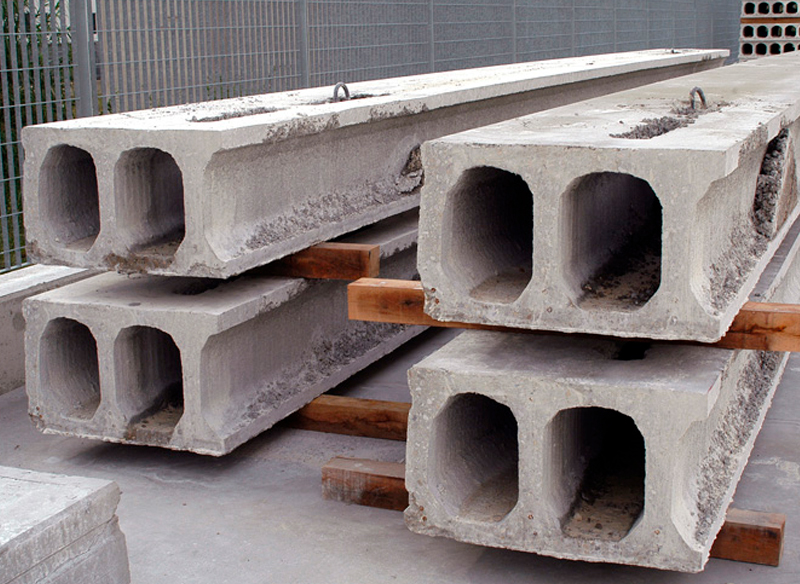

The model C-AM saw is used to cut prestressed concrete elements to the desired length directly on the production bed.

Transversal cut (0°)

The machine is stationery on the bed whilst the cutting head cuts transversally across the element.

Longitudinal cut (90°)

The machine cuts the element with the cutting head in a fixed position and with the machine advancing along the bed.

Angular cuts (- 90° < 0 > 90°)

The machine and the cutting head advance in synchronization to create angled cuts. All the movements of the machine are electronically driven and controlled by the operator using a touch screen panel.

Gallery

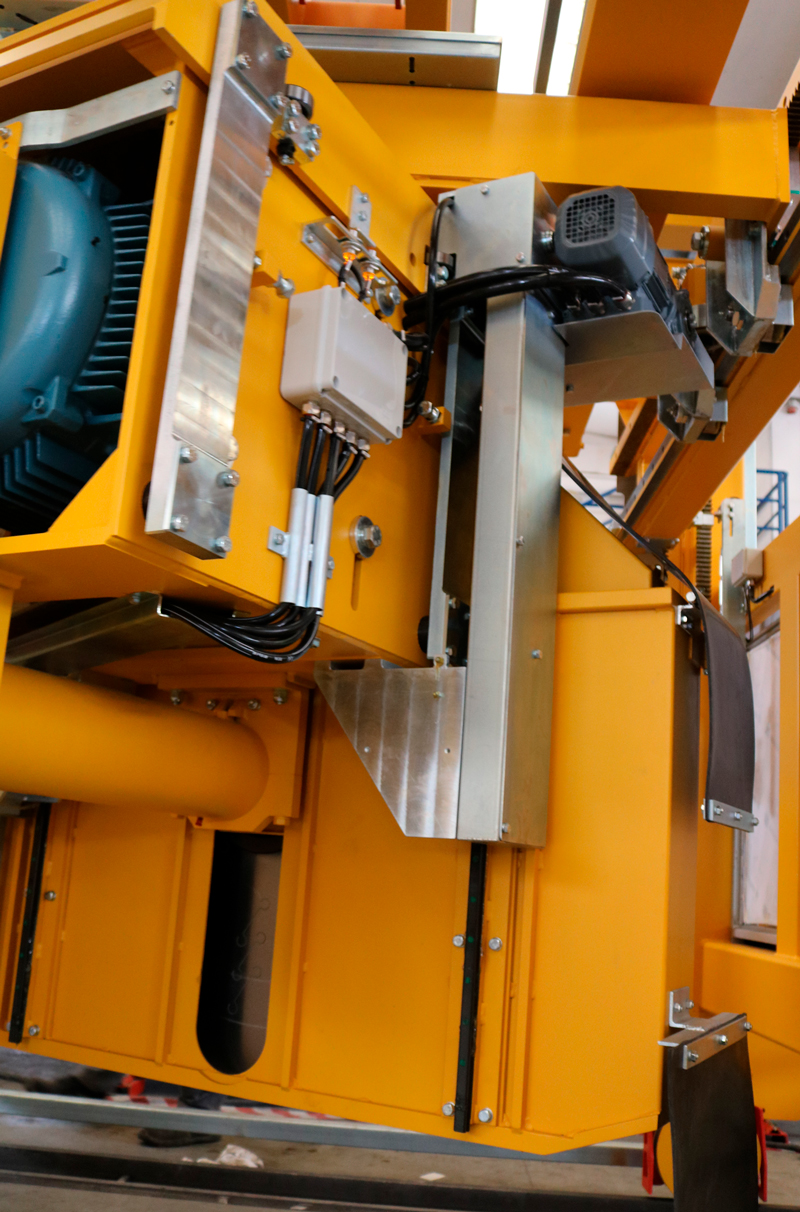

Multi-Angle Saw Series C-AM
Multi-Angle Saw Series C-AM
Multi-Angle Saw Series C-AM
Multi-Angle Saw Series C-AM
Laser guide to project a cutting line on the element
Laser guide to project a cutting line on the element
Transversal cut
Transversal cut
Longitudinal cut
Longitudinal cut
Angular cuts
Angular cuts
